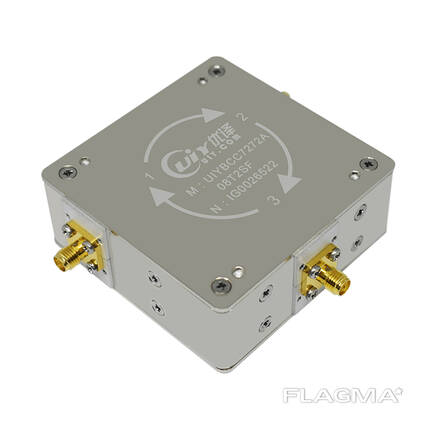

0.8 to 2.0GHz UHF Band RF Broadband Coaxial Circulator For Radio Communication

0.8 to 2.0GHz UHF Band RF Broadband Coaxial Circulator For Radio Communication
1 / 5
0.8 to 2.0GHz UHF Band RF Broadband Coaxial Circulator For Radio Communication - photo 1 0.8 to 2.0GHz UHF Band RF Broadband Coaxial Circulator For Radio Communication - photo 2 0.8 to 2.0GHz UHF Band RF Broadband Coaxial Circulator For Radio Communication - photo 3 0.8 to 2.0GHz UHF Band RF Broadband Coaxial Circulator For Radio Communication - photo 4 0.8 to 2.0GHz UHF Band RF Broadband Coaxial Circulator For Radio Communication - photo 5
Posted: 6 September 2022, 09:03 ID: 1706605
$300/piece2
Flagma member since 28 September 2021
Hu Kelly
shenzhen

Description

Model Number: UIYBCC7272A08T2SF
Frequency Range: 0.8~2.0GHz
Insertion Loss:1.3dB
Isolation: 12dB
VSWR:1.6
Forward Power: 100W
Reverse Power: 100W
Connector Type: SMA-F
Temperature: +10~+70°C
Dimension:72*72*27.4mm

The owner of the ad has the most up-to-date information.
